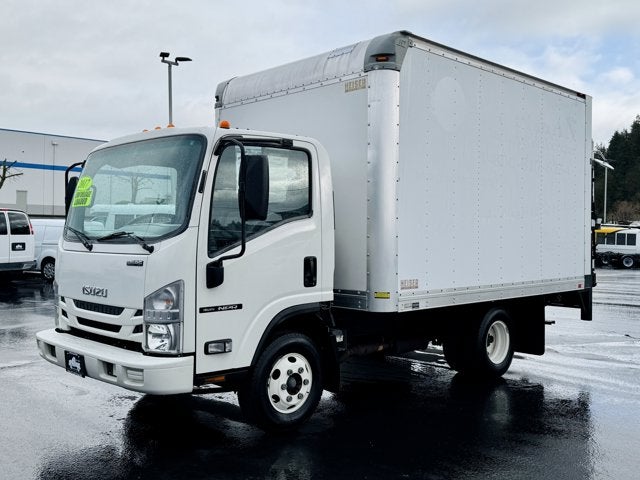

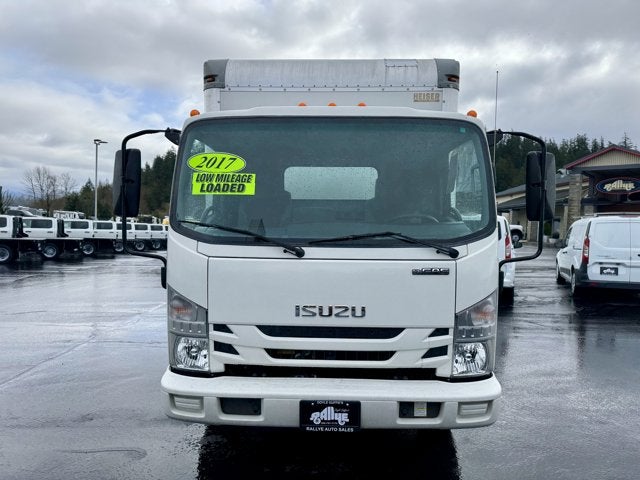

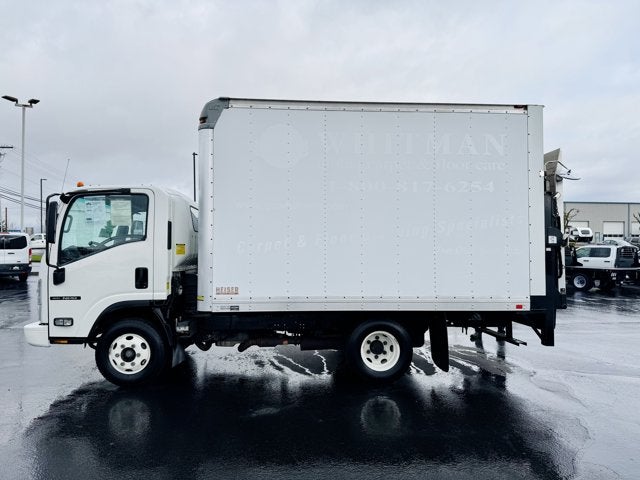

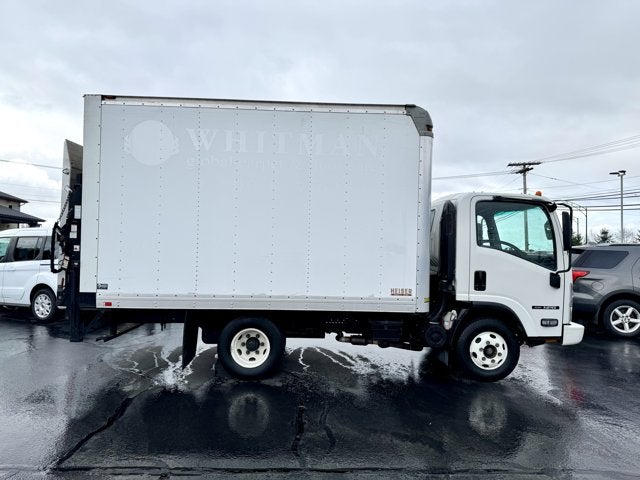

2017 ISUZU BOX VAN NPR

Visit our Store

Vehicle Information

VIN: 54DB4W1B1HS807042
Stock #: 23145
Model Code: DB104
  • Body Style Tilt Chassis Cab
  • Exterior Color White
  • Interior Color Gray

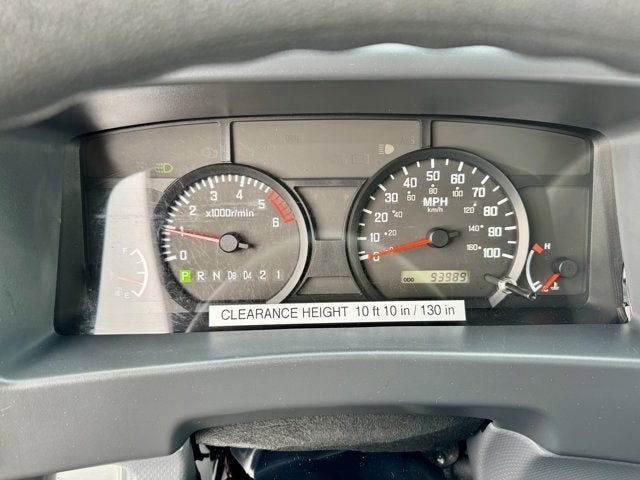

  • Mileage 93,959

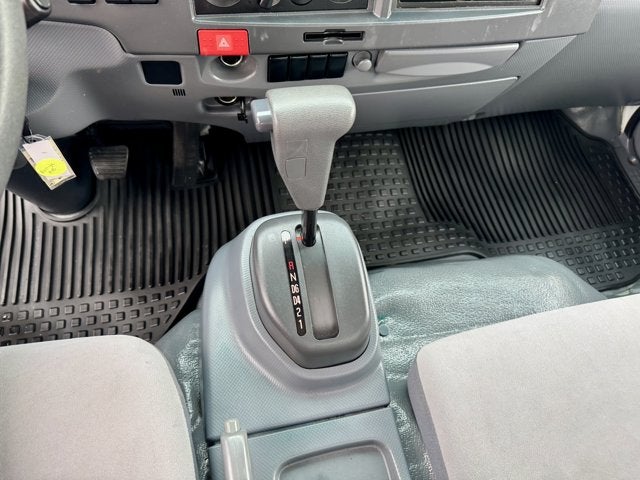

  • Transmission Automatic
  • Fuel Type Gasoline

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
  • Aux Input
  • Cruise Control

Dealer Comments

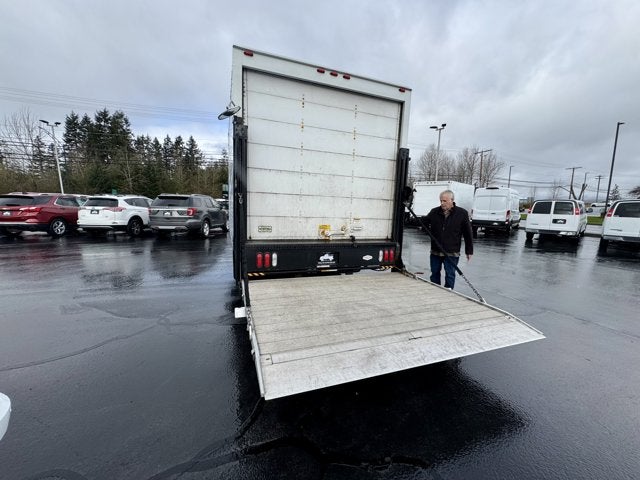

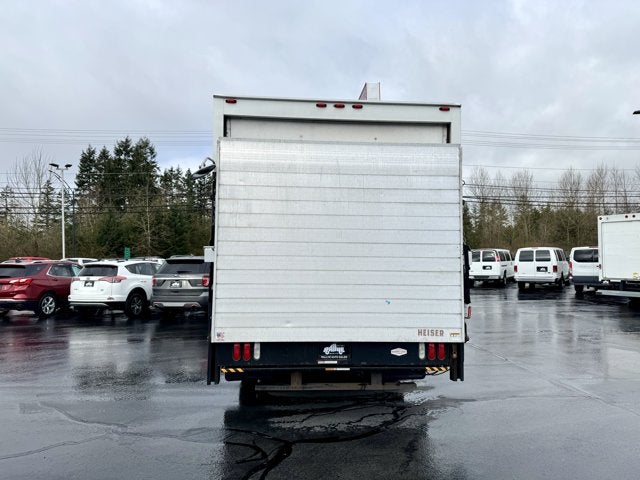

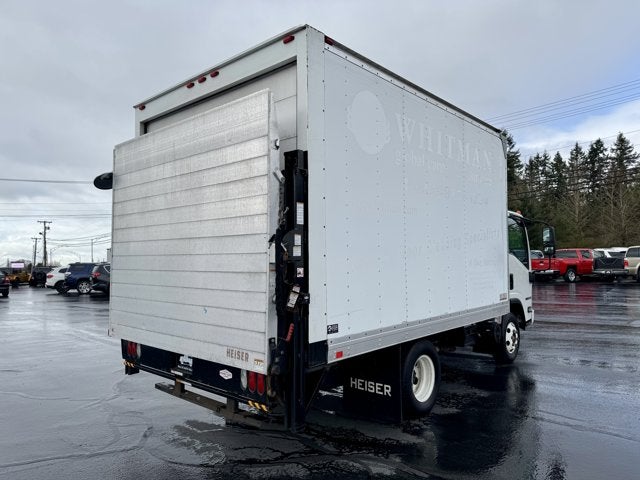

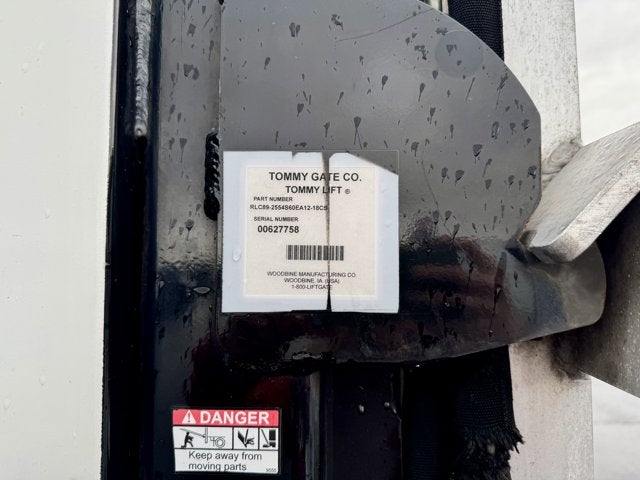

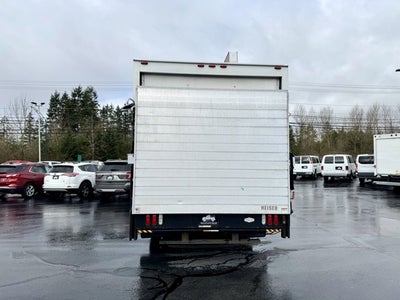

2017 ISUZU NPR BOX VAN, AUTO 6.0 V8, POWER WINDOWS/LOCKS/BRAKES, A/C, TILT WHEEL, CRUISE CONTROL, AM/FM/CD, CLOTH INTERIOR, POWER LIFT GATE

A negotiable documentary service fee of up to $200 may be added to the sale price or capitalized cost.

Eligible Benefits

CarFax One Owner

All Features

  • Truck Application

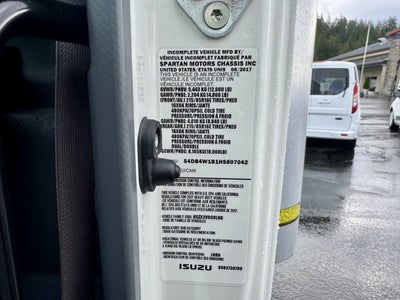

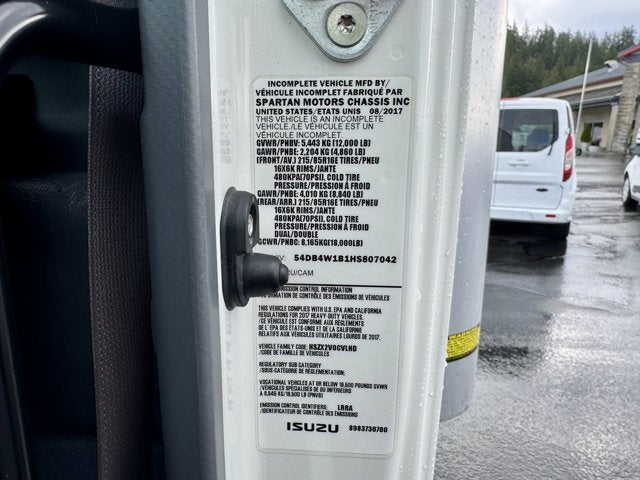

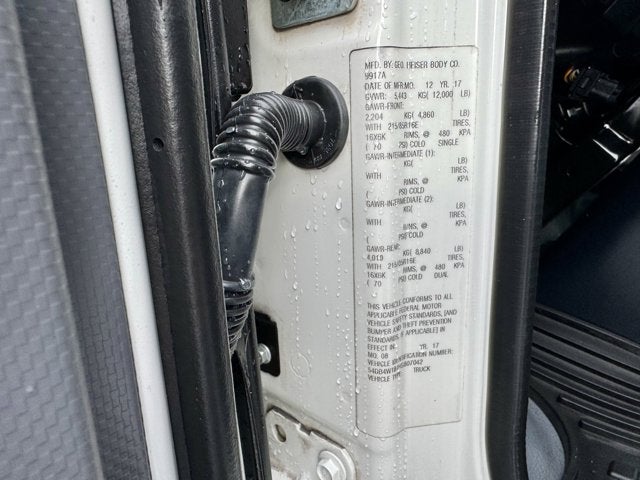

  • GVWR, 12,000 lbs (5443 kg) capacity
  • Air Cleaner, 11 in. diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
  • Rear wheel drive
  • Battery, Single Delco 12-V maintenance free 750 CCA frame mounted battery box
  • Alternator, 145 Amp. output with integral regulator
  • Front GAWR, 4860 lbs capacity
  • Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
  • Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
  • Rear GAWR, 8840 lbs capacity
  • Rear Axle, R040, Full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
  • Rear Axle Ratio, 5.125:1
  • Rear Suspension, 12,900 lbs. (5851 kg) capacity. Semi-elliptical steel alloy multi-leaf springs. Includes shock absorbers.
  • Wheelbase, 109" (276.9 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.

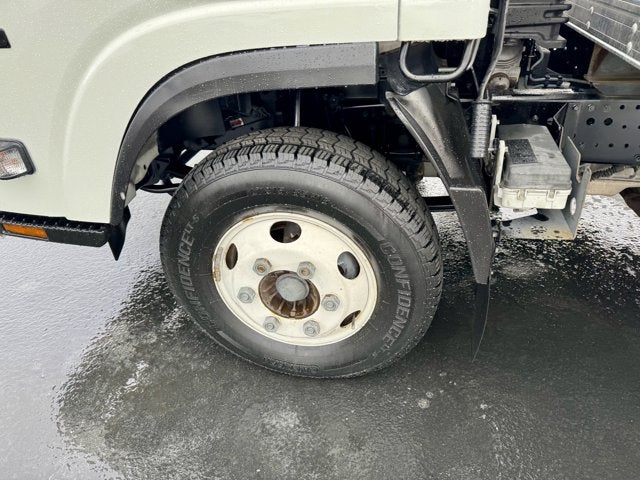

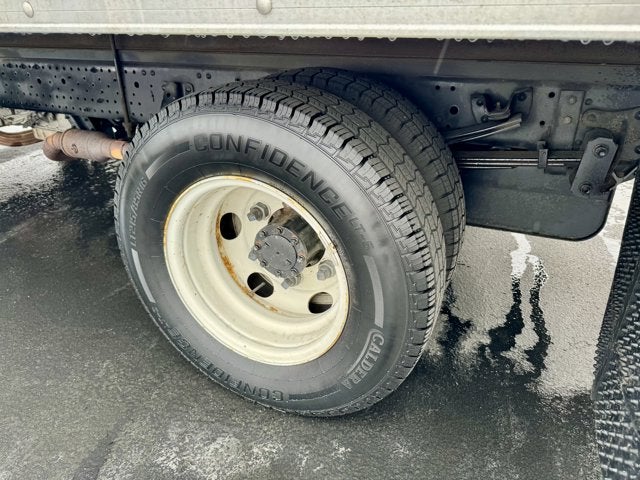

  • Front/Rear Wheels, 16" x 6", 6-hole disc, painted white
  • Front/Rear Tires, 215/85R16E (10 ply) LRR (low rolling resistance) tubeless steel belted radials, all season
  • Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill
  • Exhaust System, Single horizontal aluminized steel with catalytic converter and oxygen sensor devices
  • Paint Scheme, Solid
  • Color, Arc White
  • Hexapod cab
  • Daytime running lamps
  • Windows, Tinted glass
  • Mirrors, Dual cab mounted exterior with integral convex mirror
  • Windshield Wipers, Intermittent wet-arm

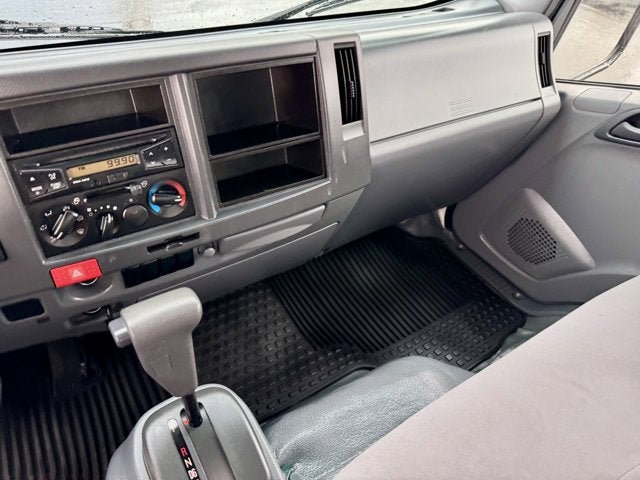

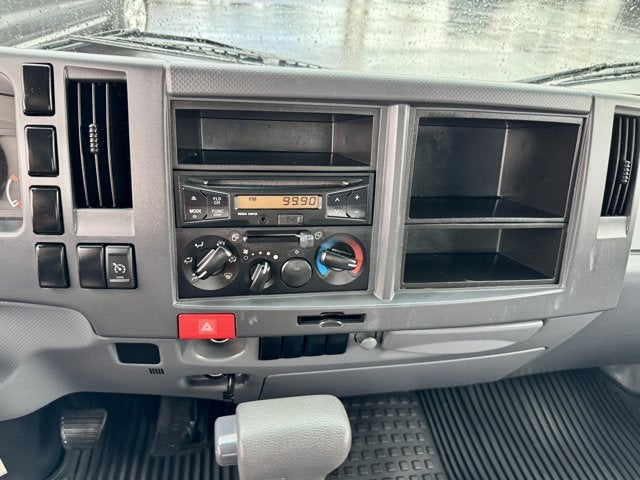

  • AM/FM/CD stereo radio with aux input & USB port

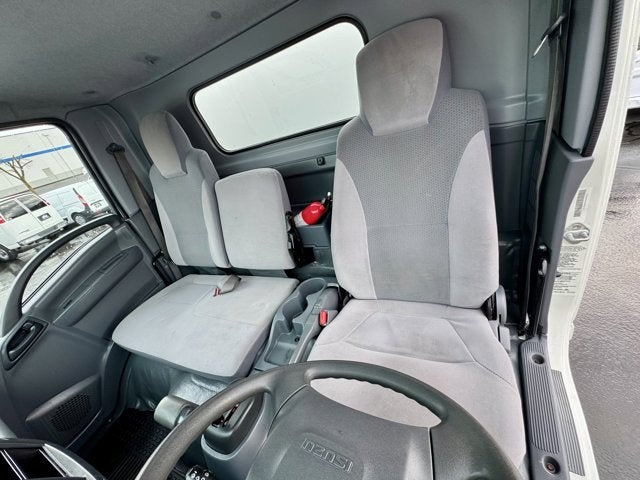

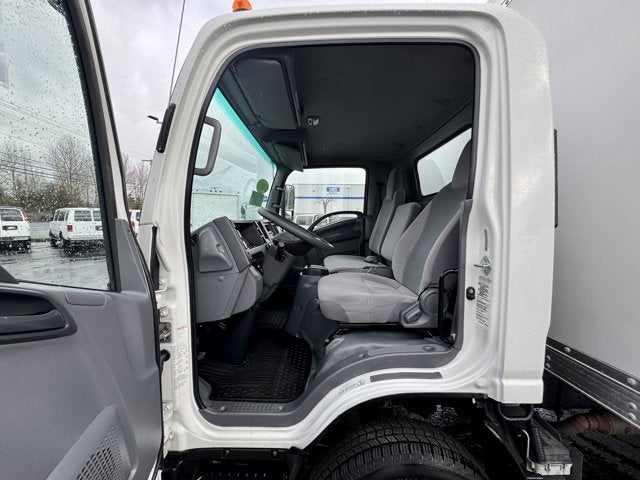

  • Tricot cloth covered reclining highback driver seat with single two occupant fold down passenger seat with tray backs
  • Floor mats
  • RH dash washer bottle service access

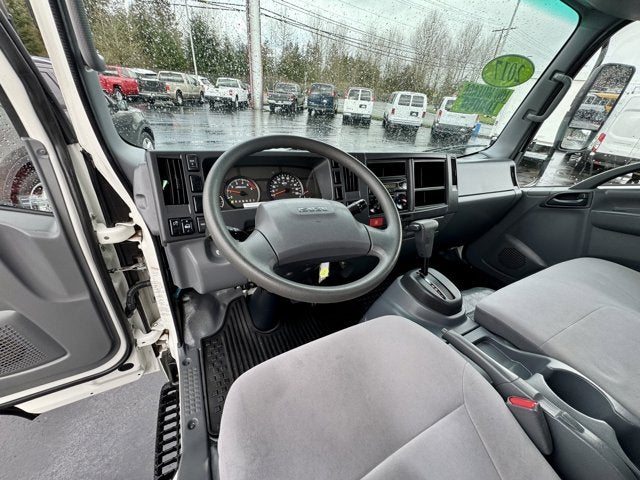

  • Tilt and telescoping steering column

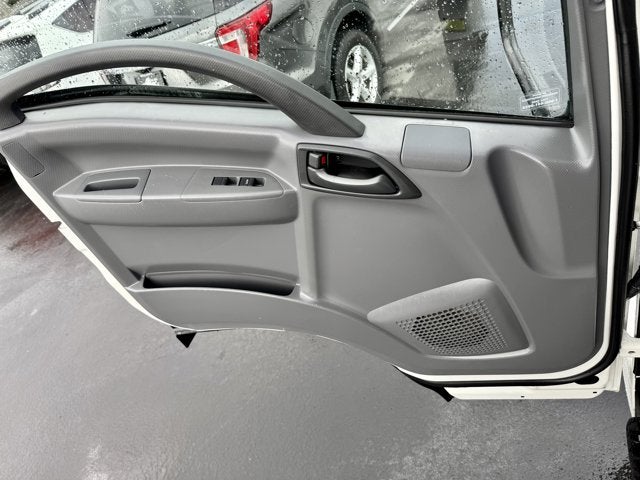

  • Pwr windows & door locks
  • Cruise control
  • Air Conditioning, Integral in dash mounted

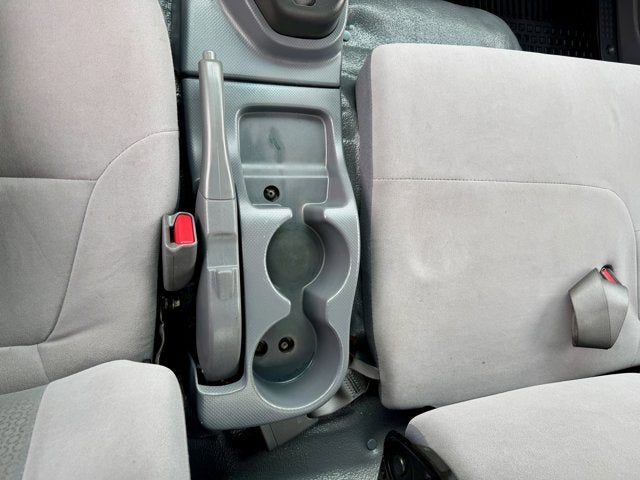

  • Cup holders
  • Door storage pockets
  • Overhead storage shelf
  • Dome light
  • Seatback pockets
  • 4-channel anti-lock brake system (ABS)
  • Daytime running lamps
  • EBD (Electronic Brake Distribution)

GAS ENGINE, GMPT-V8 8 CYLINDER V BLOCK, FOUR CYCLE OVERHEAD VALVE WATER COOLED VORTEC 6 LITER SFI V8 297 HP GROSS @ 4300 RPM; 372 LB-FT GROSS TORQUE @ 4000 RPM.

  • Electronically controlled sequential fuel injection. Six bolt main cap design for heavy duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control
  • engine oil cooler
  • High Idle Mode (1200 rpm) (STD)

  • Vehicle
    • Front Frame Rating: - TBD -
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 750
    • Maximum Alternator Capacity (amps): 145
    • Maximum Alternator Watts: 1740
  • Cooling System
    • Total Cooling System Capacity (qts): 17.1
  • Weight Information
    • Gross Axle Wt Rating - Front (lbs): 4860
    • Gross Axle Wt Rating - Rear (lbs): 8840
    • Curb Weight - Front (lbs): 3302
    • Curb Weight - Rear (lbs): 1720
    • Gross Vehicle Weight Rating Cap (lbs): 12000
    • Gross Combined Wt Rating (lbs): 18000
  • Suspension
    • Suspension Type - Front: Tapered Leaf
    • Suspension Type - Rear: Multi-Leaf
    • Spring Capacity - Front (lbs): 8440
    • Spring Capacity - Rear (lbs): 12900
    • Axle Type - Front: Reverse I-Beam
    • Axle Type - Rear: Full-Floating
    • Axle Capacity - Front (lbs): 6830
    • Axle Capacity - Rear (lbs): 11020
    • Axle Ratio (:1) - Rear: 5.125
    • Shock Absorber Diameter - Front (mm): 42
    • Shock Absorber Diameter - Rear (mm): 42
    • Stabilizer Bar Diameter - Front (in): 1.65
  • Brakes
    • Brake Type: Pwr
    • Brake ABS System: 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -
    • Drum - Rear (Yes or ): Yes
    • Rear Drum Diam x Width (in): 12.6 x 3.94
  • Tires
    • Front Tire Order Code: I53/I69
    • Rear Tire Order Code: I53/I34
    • Front Tire Size: 215/85R16E
    • Rear Tire Size: 215/85R16E
    • Front Tire Capacity (lbs): 4860
    • Rear Tire Capacity (lbs): 8840
    • Revolutions/Mile @ 45 mph - Front: 683
    • Revolutions/Mile @ 45 mph - Rear: 683
    • Number Of Tires Front: 2
    • Number Of Tires Rear: 4
  • Wheels
    • Front Wheel Size (in): 16 x 6
    • Rear Wheel Size (in): 16 x 6
    • Front Wheel Offset (mm): 127.0
    • Rear Wheel Offset (mm): 127.0
    • # of Bolt Holes - Front: 6
    • # of Bolt Holes - Rear: 6
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Front Bolt Pattern: 6 Hole JIS 8.75"
    • Rear Bolt Pattern: 6 Hole JIS 8.75"
  • Steering
    • Steering Type: Pwr
    • Steering Ratio (:1), On Center: 18.8 - 20.9
    • Steering Ratio (:1), At Lock: 18.8 - 20.9
    • Turning Diameter - Curb to Curb (ft): 33.5
    • Turning Diameter - Wall to Wall (ft): 38.8
  • Frame
    • Frame Type: Ladder
    • Sect Modulus Rails Only (in³): 7.20
    • Frame RBM (N/A): 316800
    • Frame Strength (lbs): 44000
    • Frame Thickness (in): 8.5 X 2.76 X 0.24
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 30
    • Fuel Tank Location: In frame rail
  • Exterior Dimensions
    • Wheelbase (in): 109.0
    • Length, Overall w/o rear bumper (in): 200.5
    • Width, Max w/o mirrors (in): 81.3
    • Height, Overall (in): 90.0
    • Overhang, Front (in): 48.4
    • Overhang, Rear w/o bumper (in): 43.1
    • Front Bumper to Back of Cab (in): 70.9
    • Cab to Axle (in): 86.5
    • Cab to End of Frame (in): 129.6
    • Ground to Top of Frame (in): 31.8
    • Frame Width, Rear (in): 33.5
    • Ground Clearance, Front (in): 7.5
    • Ground Clearance, Rear (in): 7.5
    • Body Length Default Value (ft): 12
  • Interior Dimensions
    • Passenger Capacity: 3
    • Front Head Room (in): 38.4
    • Front Leg Room (in): 29.5
    • Front Shoulder Room (in): 70.7
    • Front Hip Room (in): 67.7
  • Summary
    • Vehicle Name: Isuzu NPR GAS REG
    • Body Style: Tilt Chassis Cab
  • Medium Duty Performance
    • Driver Ratio: 1
    • Torque @ Clutch Engage (ft-lbs): 260
    • Torque Converter: 2.60
    • Static Loaded Radius (in): 14.3
    • Max Speed For Gradeability: 78
