• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system

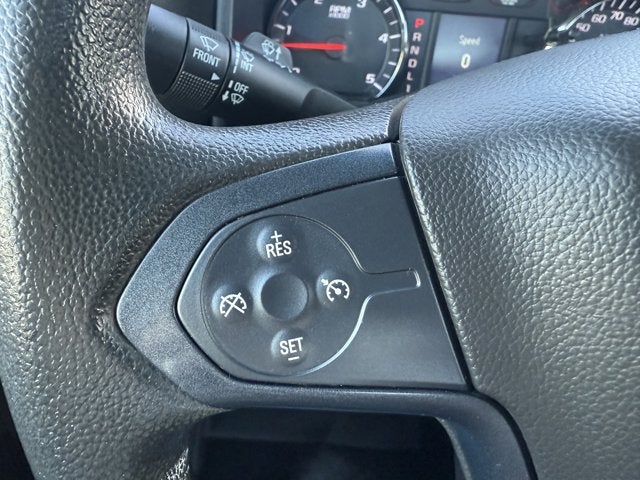

• Cruise control, steering wheel-mounted

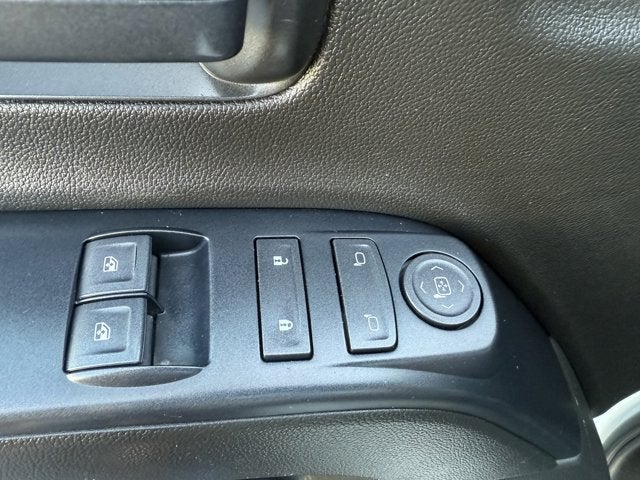

• Door locks, power
• Floor covering, Graphite-colored rubberized-vinyl
• Mirror, inside rearview manual day/night

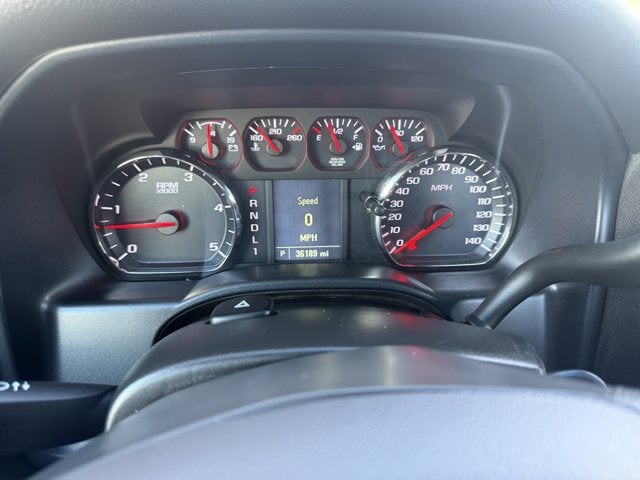

• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl

• Alternator, 150 amps
• Capped Fuel Fill
• Rear wheel drive

• Daytime Running Lamps, with automatic exterior lamp control
• OnStar, delete
• Traction control

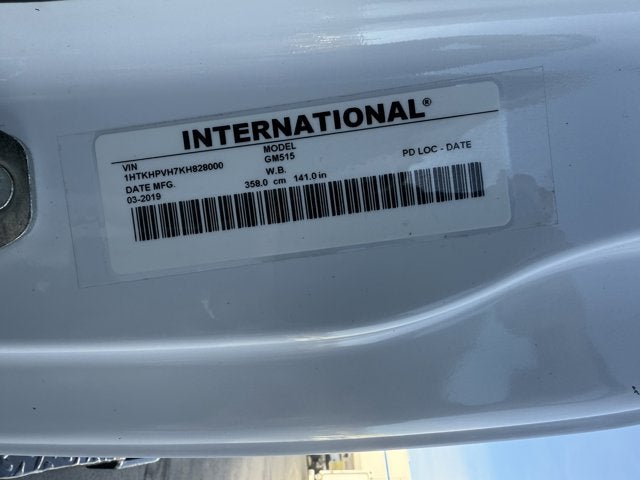

WHEELBASE, 141" (358.1 CM), 60" CA

• (STD)

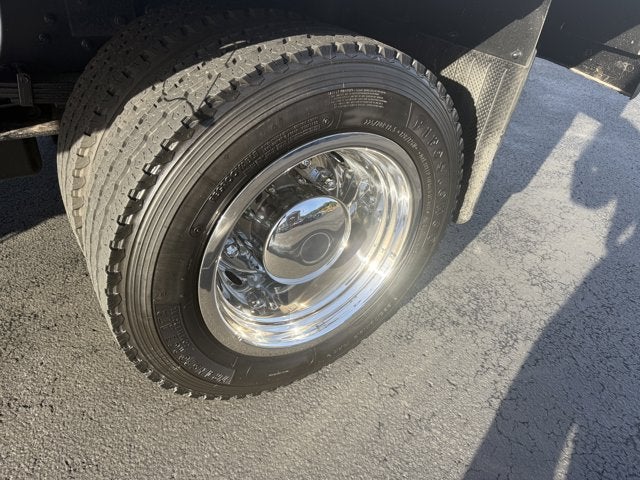

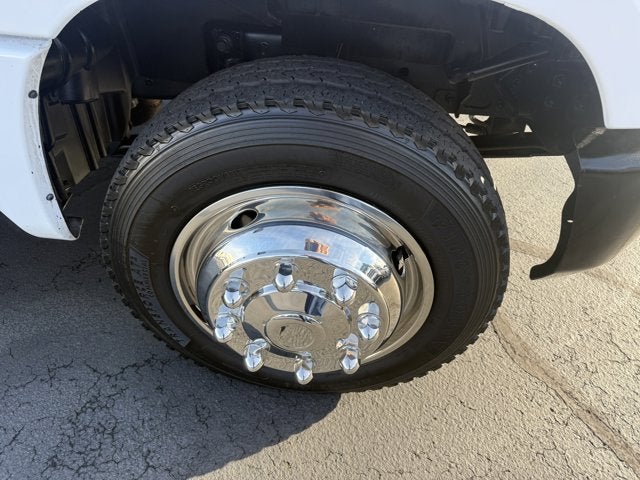

WHEELS, 19.5" X 6.75", STEEL, BLACK PAINTED, 8-HOLES, HUB PILOTED

• (STD)

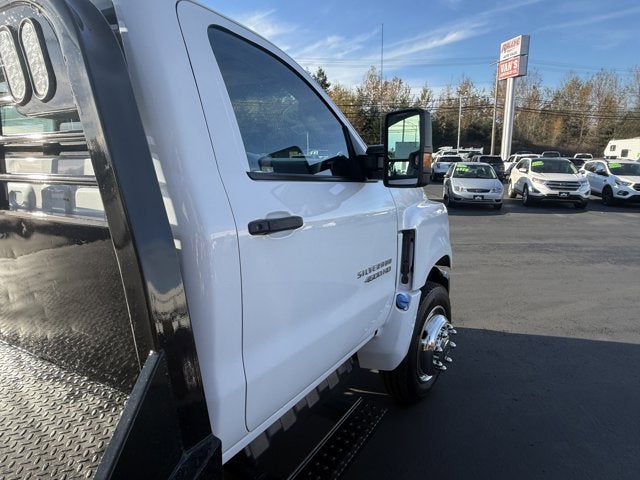

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

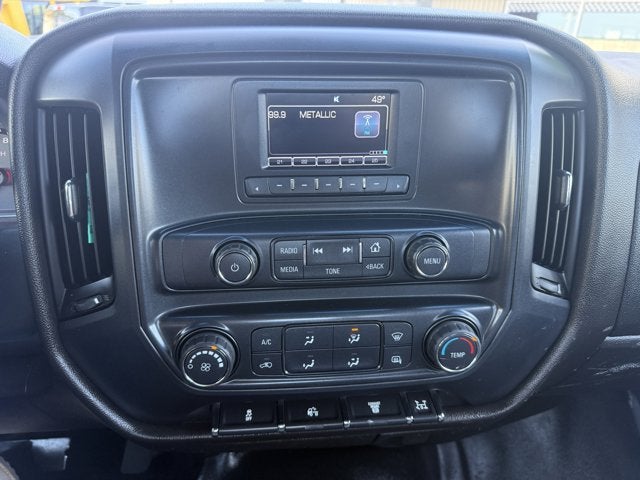

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY

• AM/FM stereo with USB port and auxiliary jack (STD)

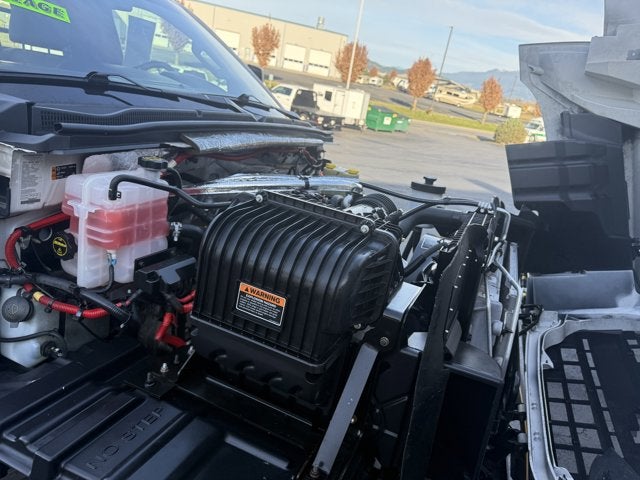

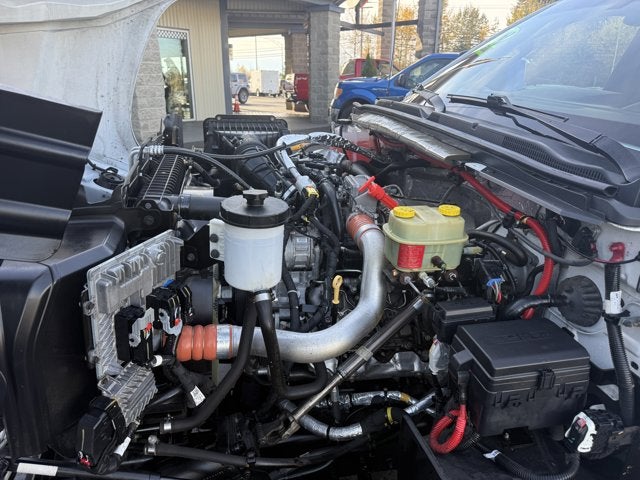

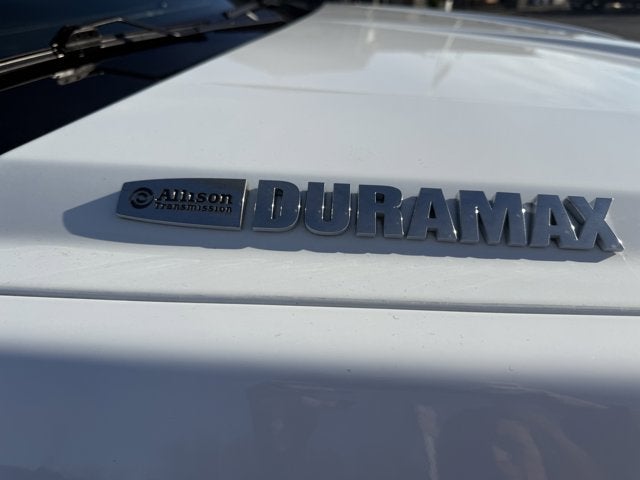

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb-ft torque @ 1600 rpm (STD)

REAR SUSPENSION, 11,000 (4,990 KG) MULTI-LEAF, VARI-RATE

• (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

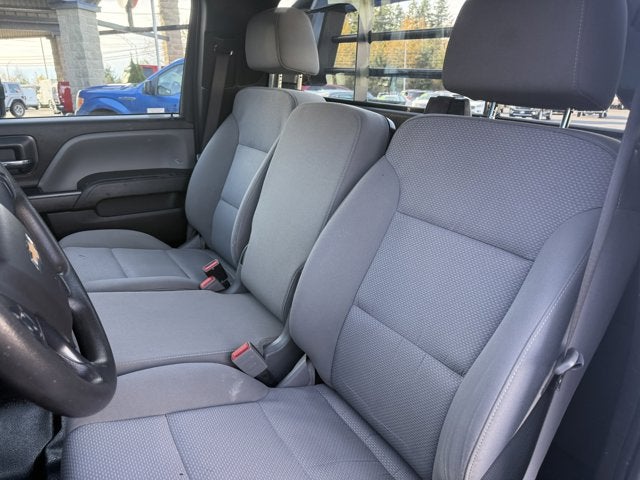

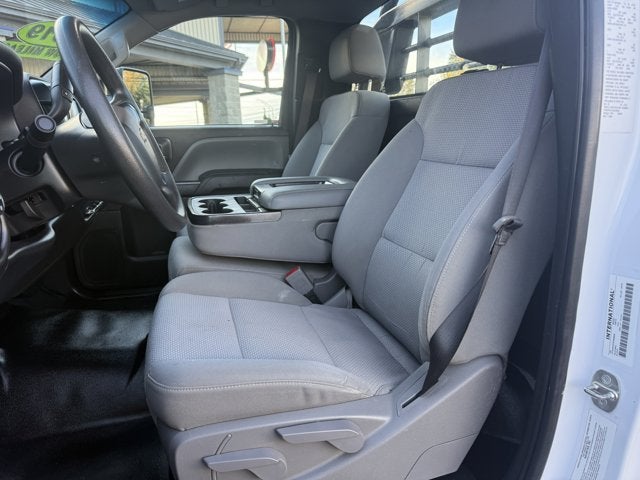

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1700RDS

• ratios: 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 6TH Rugged Duty Series
• 19.5K GVW & 26K GCW Max.

SPARE TIRE DELETE

• (STD)

REAR AXLE, 4.10 RATIO

• Max road speed: 79 MPH

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lbs.

AIR CONDITIONING, SINGLE-ZONE

• (STD)

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lbs.

• WHEELBASE 141" (358.1 CM) 60" CA (STD)
• WHEELS 19.5" X 6.75" STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• AUDIO SYSTEM 4.2" DIAGONAL COLOR DISPLAY AM/FM stereo with USB port and auxiliary jack (STD)
• SUMMIT WHITE
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb-ft torque @ 1600 rpm (STD)
• REAR SUSPENSION 11 000 (4 990 KG) MULTI-LEAF VARI-RATE (STD)

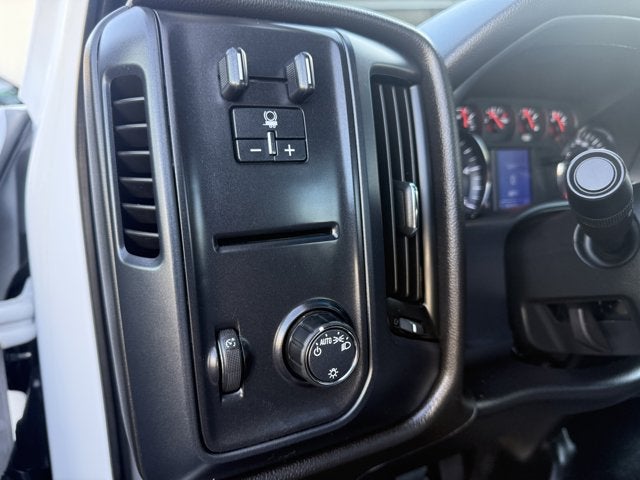

• TRAILER BRAKE CONTROLLER INTEGRATED
• FRONT SUSPENSION 6 000 LBS.(2 722 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
• LICENSE PLATE KIT FRONT
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• REAR AXLE 10 000 LB. (4 536 KG) DANA SPICER S14-110 SINGLE REDUCTION
• FRONT AXLE 6 000 LBS. DANA SPICER D800-N "I"-BEAM NON-DRIVING
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1700RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series 19.5K GVW & 26K GCW Max.
• POWER TAKE OFF ENGINE CONTROL PROVISIONS

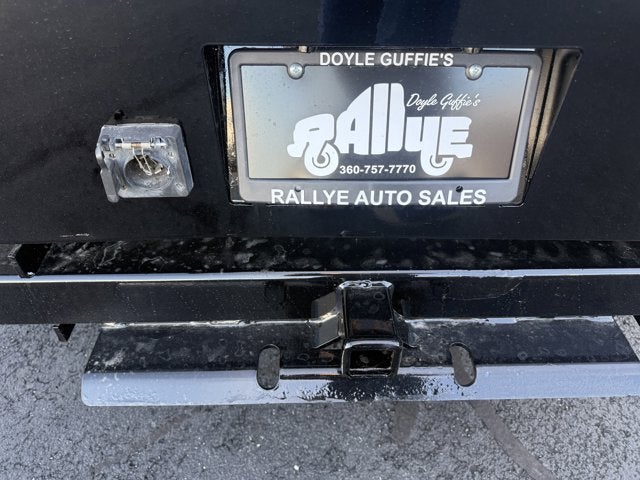

• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• SPARE TIRE DELETE (STD)
• FRONT FENDER EXTENSION PAINTED BODY COLOR
• PAINT SOLID
• REAR AXLE 4.10 RATIO Max road speed: 79 MPH
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 7 940 lbs.
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• AIR CONDITIONING SINGLE-ZONE (STD)

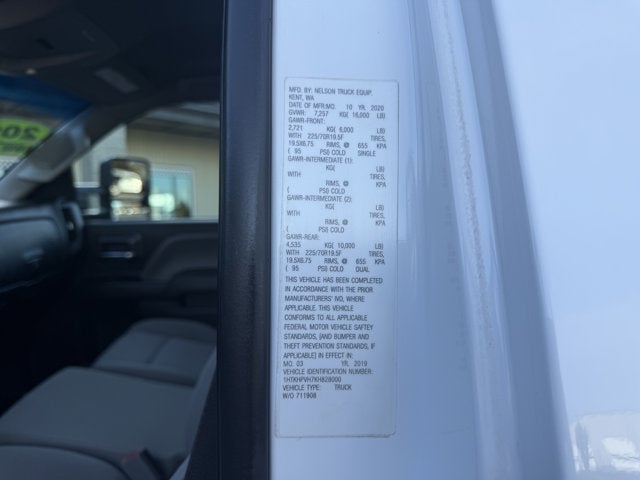

• GVWR 16 000 LBS. (7257 KG)

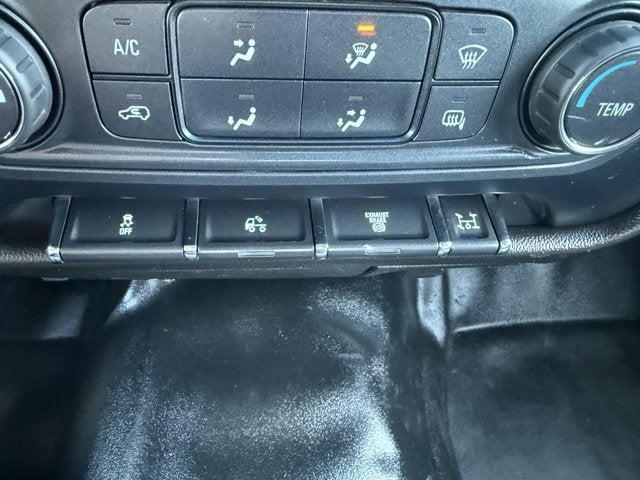

• EXHAUST BRAKE
• TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 15 000 lbs.
• 26 000 LBS. GCWR (11 793 KG)
• Turbocharged
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Power Steering
• ABS
• Steel Wheels
• Running Boards/Side Steps
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• A/C
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• Traction Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Passenger Air Bag On/Off Switch

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Exterior Dimensions
• Body Length Default Value (ft): 8
• Cab to Axle (in): 59.84
• Cab to End of Frame (in): 109.0
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 115.47
• Ground to Top of Load Floor (in): 29.7 front/32.2 rear
• Height, Overall (in): 88.0
• Length, Overall (in): 224.5
• Overhang, Front (in): 34.3
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 141
• Width, Max w/o mirrors (in): 84
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Location: Front & Rear
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 3
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 79
• Static Loaded Radius (in): 15
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 41.2
• Turning Diameter - Wall to Wall (ft): 42.8
• Summary

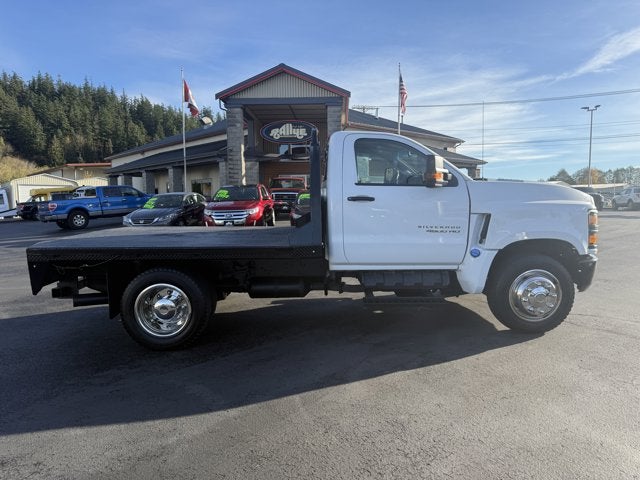

• Body Style: Regular Cab Chassis Cab

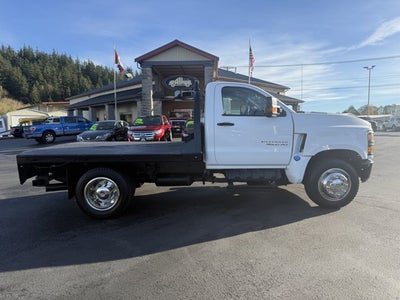

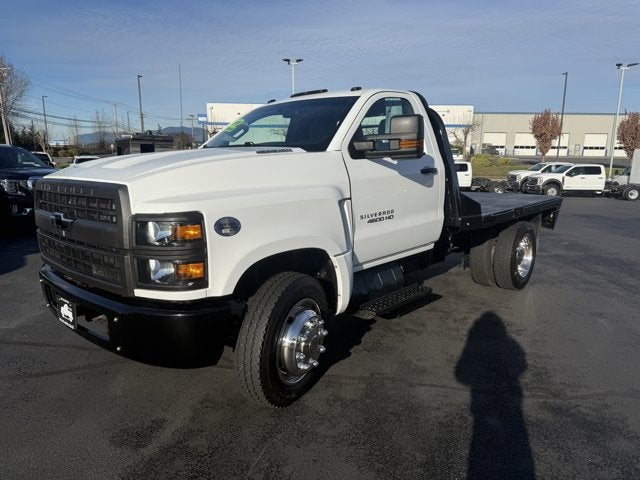

• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 10000
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single-reduction
• Shock Absorber Diameter - Front (mm): 51
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Rear (lbs): 11000
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDK
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAL
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 2
• Weight Information
• Curb Weight - Front (lbs): 4704
• Curb Weight - Rear (lbs): 2803
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Rear (lbs): 10000
• Gross Combined Wt Rating (lbs): 26000
• Gross Vehicle Weight Rating Cap (lbs): 16000
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 hole JIS 10.83"
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 hole JIS 10.83"
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 x 6.75
